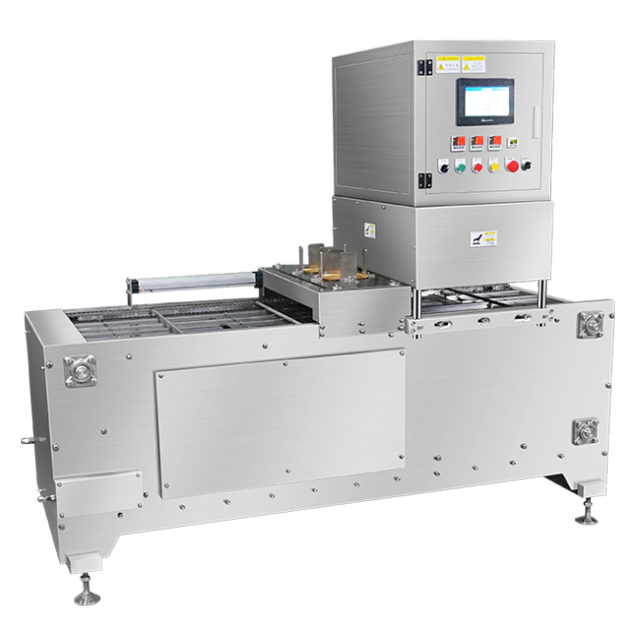

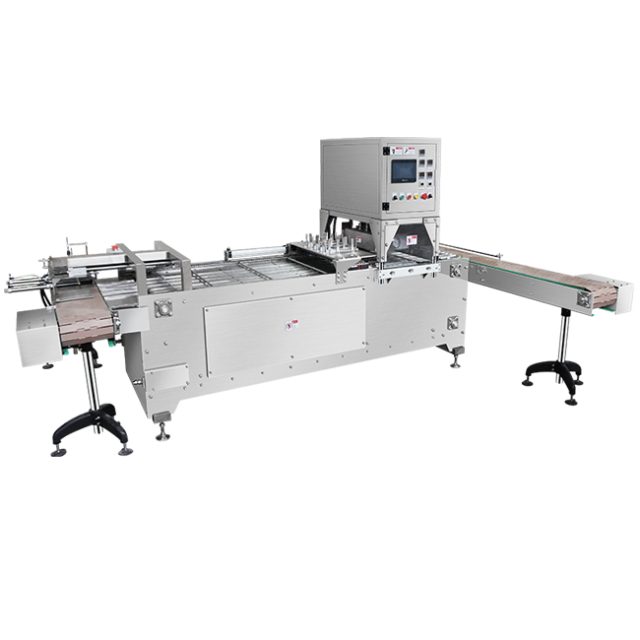

The automatic aluminium foil tray sealing machine is designed for sealing tray or jar containers, such as frozen foods, fast foods, dried foods etc.
Application range:
The automatic aluminium foil tray sealing machine is designed for sealing tray or jar containers, such as frozen foods, fast foods, dried foods etc.
Features:
1. Mold changeable design for flexible application;
2. Servo driven system,work more steady and easy maintain;
3. whole machine is made by SUS304,meet with GMP requirements;
4. Fit size, high capacity;
5. International brand accessories;

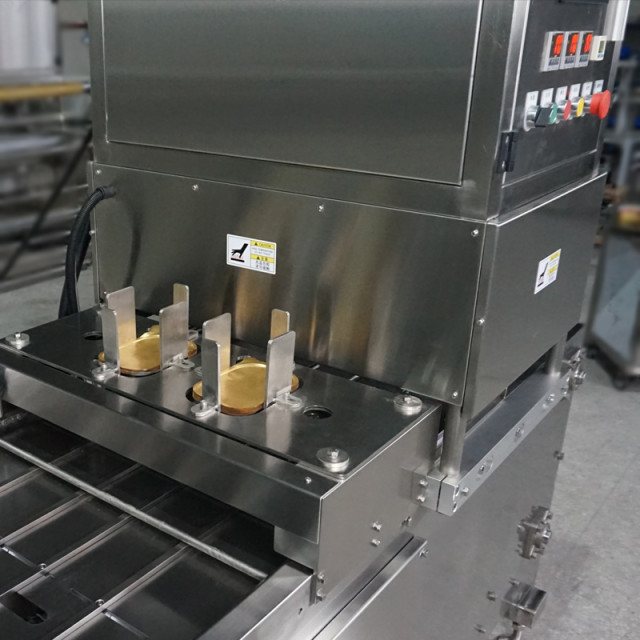

6. Up and down double sealing system ensures the perfect heat sealing quality(Specially designed for aluminum trays).
Application:
Name |
Aluminium foil film |
Roll film |
||
Model |
ATS-2A |
ATS-4A |
ATS-2R |
ATS-4R |
Voltage |
3P 380v/50hz |
|||
Power |
3.8kW |
5.5kW |
2.2kW |
3.5kW |
Sealing temperature |
0-300℃ |
|||
Tray size |
L:W ≤ 240*150mm H≤55mm |
|||
Sealing Material |
PET/PE, PP, Aluminum foil, Paper/PET/PE |
|||
Capacity |
1200 trays/h |
2400 trays/h |
1600 trays/hour |
3200 trays/hour |
Intake pressure |
0.6-0.8Mpa |
|||
G.W |
600kg |
900kg |
640kg |
960kg |
Dimensions |
2200×1000×1800mm |
2800×1300×1800mm |
2200×1000×1800mm |
2800×1300×1800mm |
